Haida X-in-1 Magnetic Filter Guide: What the VND, CPL, Enhancer and Mist Actually Do

Haida X-in-1 filter system with red base, attachments, adapter and cap; generated illustration

The Haida NanoPro U-LR Magnetic X-in-1 kit combines exposure control, polarization and optional diffusion. The useful buying question is which parts you will use, which size fits your lenses, and whether a simpler CPL-VND already covers your work.

Quick answer: buy for the effects you need and the largest lens thread

Choose Haida X-in-1 77mm at ₹15,640 if your working lenses are 77mm or smaller and you have no reason to plan for 82mm. Choose X-in-1 82mm at ₹16,830 if an 82mm lens is already in the kit or a larger shared filter fits your buying plan.

The ₹1,190 size difference buys a larger system, not a stronger mist effect or an extra stop range. The kit is most useful when you want to alternate between a clean exposure-controlled look and optional Black Mist diffusion without carrying unrelated filter systems.

  • VND: controls the amount of light for aperture and shutter choices.
  • CPL: changes suitable reflections and polarization, rather than simply darkening every surface equally.
  • Enhancer: extends the base working range from 1–5 to 3–7 stops.
  • Black Mist 1/4: adds diffusion and highlight bloom when that look is wanted.
  • Adapter and cap: provide the system’s mounting interface and front protection.

Prices below were checked on 2 October 2026. Product pages show the latest price, availability and exact variant; totals exclude any checkout offers or shipping.

Quick Comparison

Part of the kitPractical jobWhen to use itWhat not to assume
CPL-VND baseVariable exposure control over the base 1–5 stop range, with polarization controlDaylight video, travel and reflective outdoor scenesIt is not a clear protective filter for low-light use.
EnhancerShifts the working ND range to 3–7 stopsWhen the base is not dark enough for the intended exposureDo not add “3–7” to “1–5” and call the kit 4–12 stops.
Black Mist 1/4Diffusion, highlight bloom and a softer renderingPortraits, practical lights and deliberately softer scenesIt does not replace ND or increase the sharpness of a lens.
Magnetic adapter ringMounting interface for the matching X-in-1 systemInstall the matched base interface before adding attachmentsA magnetic accessory from a different family is not automatically compatible.
Magnetic capProtects the front when the kit is carried or storedBetween shots and during transportConfirm secure seating; it is not a filter effect.

What the variable ND does for video

Imagine recording at 25 fps with a shutter near 1/50 second and the aperture chosen for the depth of field you want. In bright light, lowering ISO may not be enough. ND reduces the light reaching the camera so you can keep the intended shutter and aperture. A variable ND makes that reduction adjustable as lighting changes.

Choose ND density from the exposure meter, not the look of the filter glass. Start near the lower end, set the intended aperture and shutter, then increase density until exposure is right. If the base range is insufficient, use the matching enhancer rather than forcing the adjustment beyond its marked range.

What the CPL changes, and when to leave reflections alone

A circular polarizer is useful when reflections from water, glass or foliage are hiding detail you want to show. Rotate the control while watching the actual scene. The result depends on viewing angle and lighting; it will not remove every reflection or behave identically on metal, glass and water.

For a café interior, reducing window reflections might help the shot. For a bottle, watch or polished product, some reflections are what describe the shape. Turn the polarizer deliberately instead of treating maximum reflection removal as the default. Check the whole frame, because a setting that improves one surface can change another.

What the enhancer adds: a darker range, not extra colour saturation

Here, “enhancer” is the ND extension component. With the base, the working range changes from 1–5 to 3–7 stops. Think of it as moving the exposure window two stops darker. It is not a separate 3–7 stop filter to add arithmetically to every base setting.

For a midday talking-head shot with a wide aperture, the base may reach its limit before exposure is low enough. The enhancer gives the next working range. For a shaded scene, remove it when that extra reduction is unnecessary. The aim is the fewest components that give the exposure and look you need.

What Black Mist 1/4 does to the image

Black Mist 1/4 is the creative part of the kit. It diffuses light, can soften fine contrast and creates bloom around bright sources. That can suit a portrait with practical lamps, a music clip or a deliberate softer travel sequence. It can also be the wrong choice when the job needs clean fine detail or a neutral product record.

Make one scene-level decision before recording: clean or diffused. Check bright sources, skin detail and the darkest areas on your monitor. A filter cannot restore clipped highlights, and diffusion should not be used as a substitute for exposure control. Keep the look consistent across shots that will be edited together.

The Haida X-in-1 component page identifies the matched base, enhancer, Black Mist 1/4, adapter and cap. The Videolinks product pages specify the current kit contents.

The generated images illustrate the kit and workflow. They are not photographs from an optical or flash performance test.

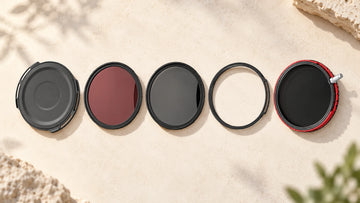

Separated Haida X-in-1 filter components arranged on a tabletop; generated illustration

77mm vs 82mm: start with your lens threads

Read the Ø marking on each lens or the lens specification. A 24–70mm focal length marking does not tell you the filter thread. If your largest thread is 77mm and the kit will stay that way, 77mm avoids buying a larger system without a practical reason. If you own an 82mm lens, buy 82mm for that lens rather than using a smaller filter through a step-down ring.

For smaller threaded lenses, a correctly sized conventional step-up ring may provide the mechanical size conversion before the kit’s own matched adapter. Confirm thread type, seating and clearance for the exact assembly. Retain the native X-in-1 interface; do not assume a generic “Haida magnetic ring” accepts this system just because the brand and diameter match.

Use our step-up ring buying guide and size selector to identify the threaded size conversion. The selector answers the lens-to-filter thread question; magnetic-system compatibility remains a separate check.

How to plan stacking without overcomplicating the shot

  • Need exposure control only: use the base at the appropriate setting.
  • Need more light reduction: add the matched enhancer and work within the resulting 3–7 stop range.
  • Want diffusion as well: use the matched mist component in the manufacturer-supported configuration.
  • Changing locations: recheck exposure, polarization, corners and attachment seating after each change.

Avoid treating every possible stack as equally useful. Each extra component adds a surface to keep clean and an opportunity for flare or mechanical clearance problems. On an ultra-wide lens, inspect the corners at your actual focal length and focus distance. A larger diameter can help some setups, but it cannot guarantee that every stack is free from vignetting.

Three practical shooting decisions

Outdoor interview: choose the desired shutter and aperture, use the base for exposure, and add the enhancer only if required. Check whether polarization changes skin-adjacent reflective surfaces or the background in an unwanted way.

Travel landscape: use polarization selectively on water or foliage. On a broad blue sky, inspect for uneven darkening before committing to the shot. If the scene already works cleanly, you do not need to add mist simply because it is included.

Night scene with practical lights: the mist may be the useful component, while substantial ND reduction may be counterproductive. Check that the supported assembly does not force more light loss than the shot can tolerate; remove unnecessary ND components where the system configuration allows.

Is the full X-in-1 kit worth it for you?

Buy the full kit if optional diffusion and the magnetic attachment workflow solve real shooting needs. If you mainly want variable ND and polarization and do not use mist, compare the Haida PROII CPL-VND. Its 3–7 stop range and lower entry cost may be a more direct fit. Our RevoRing Mark II vs Haida PROII comparison explains the mounting and multi-lens cost tradeoff.

The best X-in-1 order is the correct diameter with a verified mounting plan. Select 77mm for a kit that tops out at 77mm, or 82mm for an existing 82mm lens and a larger shared system. Before checkout, confirm the exact box contents and any ring needed for each smaller lens.

Haida magnetic filter kit beside a camera overlooking a lake; generated workflow illustration

FAQs

Does the Haida X-in-1 enhancer make the filter 4–12 stops?

Should I buy the 77mm or 82mm Haida X-in-1 kit?

Do all Haida magnetic rings and filters fit the X-in-1 system?
