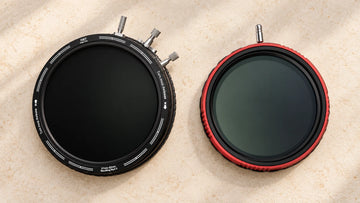

H&Y RevoRing Mark II vs Haida PROII CPL-VND: Which Makes More Sense for Your Lens Kit?

Both the H&Y RevoRing Mark II and Haida PROII combine a circular polariser (CPL) with variable neutral density (VND). The buying decision comes down to your lenses: how the filter mounts, which thread sizes you need to cover, and how much light reduction you use. Haida takes the familiar screw-in route and includes a matching step-up ring. RevoRing uses an adjustable mount for supported lens threads. Here is how we would build a practical filter kit around each.

Quick answer: our starting recommendation is Haida for a defined lens kit

If your lens thread sizes are known and 3–7 stops of ND covers your shooting, we would start with Haida PROII CPL-VND. Its conventional threaded connection, CPL + VND in one filter and included step-up ring make a straightforward kit. Each package in the chart below covers two adjacent lens thread sizes out of the box.

For 77mm and 82mm lenses, choose the 82mm PROII: the 77–82mm conversion is already supplied. Add only the missing ring if you need a third smaller size.

Choose RevoRing Mark II 67–82mm when you frequently move one filter between several supported thread sizes, or need its broader stated ND range. That flexibility has real value when you use it regularly.

Quick Comparison

Swipe the comparison table to see both filters.

Buying considerationHaida PROII CPL-VNDH&Y RevoRing Mark II 67–82mm
MountingConventional fixed-size screw thread; directly on the lens or through a matched ringAdjustable mount that engages the lens filter thread; dedicated mounting lock
Lens sizes coveredTwo adjacent sizes out of the box: native size + the included ring’s smaller sizeSupported filter threads within 67–82mm; no separate size-conversion rings within that range
VND range3–7 stops; CPL and VND in one filterND3–ND1000, approximately 1.6–10 stops; CPL and VND in one filter
Best fitKnown lens sizes and a preference for a familiar threaded setupFrequent changes across mixed thread sizes, or exposure needs outside Haida’s range
Included mounting hardwareOne matching step-up ring with each of the four packages belowBuilt-in adjustable mount
WorkflowSeat the filter on the lens or ring; no adjustable mounting diameter to setSet the mounting diameter and secure the mount; separate mount, CPL and VND locks
Adding another lens sizeBuy only the missing direct step-up ring for that smaller threadUse the adjustable mount if the new thread is within its supported fit range
Main reason to choose itStraightforward setup, two lens sizes covered out of the box and strong valueThe most mounting flexibility across 67–82mm, plus a broader ND range

Haida’s included step-up ring: what each box covers

The second adjacent lens size is already covered in the box. This is one of Haida’s most useful practical advantages when planning a shared filter.

Your lens threadsChoose this PROII sizeRing included in the box
77mm + 82mmView 82mm PROII77–82mm
72mm + 77mmView 77mm PROII72–77mm
67mm + 72mmView 72mm PROII67–72mm
62mm + 67mmView 67mm PROII62–67mm

Each filter includes one matching step-up ring, letting you use it on both lens thread sizes shown above without buying an extra ring.

Which Haida PROII size should you buy?

Choose the largest lens thread in the group you want to share the filter across. The filter mounts directly on that lens; use the included ring on the listed adjacent smaller size. For three or more sizes, add only the missing ring for each additional smaller thread. The lens-kit examples below show exactly how.

Choose your Haida PROII size

Haida PROII CPL-VND filter with red adjustment ring
82mm PROII fits an 82mm lens directly
Black Haida step-up ring labelled 77mm–82mm
77–82mm ring is included with the 82mm package

Why we like Haida’s conventional threaded approach

When planning a filter kit, we would first write down the thread sizes of the lenses used most. Haida is easy to recommend when that list is settled: align the threads, screw the filter into place and seat it securely. The connection has a fixed diameter, with no adjustable mount to position or lock.

The same routine works through the included ring on the smaller lens. If your caps and hoods allow it, rings can stay on those lenses while you move the filter. Hold the ring as you unscrew the filter, and seat both threaded joints without overtightening. This is a familiar way to keep a multi-lens kit ready.

CPL + VND in one filter: a useful combination for outdoor work

Think of an outdoor interview beside glass, or a travel shot with water in the background. VND helps maintain your chosen shutter speed and aperture in bright light; CPL helps control reflections from non-metallic surfaces. Both filters combine those jobs. Haida’s appeal is the combination of those controls with conventional mounting and an included conversion ring.

Haida’s PROII guidance recommends setting VND first, then CPL. Recheck your exposure and reflections after adjustment. Even at its minimum setting, the PROII reduces light by 3 stops: if you need polarisation without that much ND, use a standalone CPL.

Where RevoRing’s adjustable mount earns its place

If your working kit changes between 67mm, 72mm, 77mm and 82mm threads throughout the day, RevoRing becomes attractive. It lets one filter move across supported sizes without maintaining a separate ring for each lens. That is useful with mixed lens kits and rented lenses within its stated fit range.

RevoRing also engages the lens’s filter thread; its difference is the size-adjustable mounting mechanism. Mark II has separate locks for the mount, CPL and VND. H&Y’s mounting guidance explains how to position and secure the assembly. Practise the sequence before a shoot, and check the mounting lock before adjusting the filter.

Adjustable mounting asks you to pay attention to positioning and holding the assembly during setup. Once it is positioned and locked, the Mark II is designed to stay secure. The trade-off is a longer setup routine than a conventional screw-in filter. If you prefer a fixed screw-in routine, Haida is the more familiar choice; if you frequently change thread sizes, RevoRing’s flexibility may be more valuable.

View RevoRing Mark II 67–82mm

Gimbal, handheld and moving-rig use

For moving-camera work, we would choose around the setup routine and the actual rig. Haida has no adjustable mounting diameter to set: once the filter and any ring are seated properly, there is no separate mounting lock to manage. RevoRing’s adjustable mount has its own lock, alongside the CPL and VND controls.

Neither mounting approach alone decides gimbal suitability. Check the assembled size, weight and clearance on your lens and rig. Fit the filter before balancing, check that it is seated securely, and inspect its position before recording. RevoRing’s extra mounting sequence is something to learn, rather than evidence that it cannot be used on a moving camera.

3–7 stops vs approximately 1.6–10 stops: how much ND do you need?

Haida covers 3–7 stops. H&Y specifies ND3–ND1000, approximately 1.6–10 stops. RevoRing’s wider range matters if your exposure requires less than 3 stops or more than 7, such as heavier light reduction for a bright scene or a longer exposure.

If your daylight video and travel shooting already sits within 3–7 stops, we would give more weight to mounting and lens coverage. Neither nominal range guarantees the same usable maximum on every lens: inspect the corners and look for uneven darkening or a cross pattern at your widest focal length and intended ND setting.

A real-world 72mm + 77mm + 82mm lens kit

Start with one 82mm Haida PROII. It is the largest thread in this kit, so every smaller lens can share it with the appropriate ring.

  • 82mm lens: the filter mounts directly.
  • 77mm lens: use the included 77–82mm ring.
  • 72mm lens: add one direct 72–82mm step-up ring.

You have one CPL-VND for all three sizes. The 77mm conversion is already included, so your shopping list is the filter plus only one extra ring. A direct 72–82mm ring keeps the assembly simpler than chaining two conversions.

View the exact 72–82mm ring. Check the selected size’s availability before planning this three-lens setup; the live shopping cards show its stock status.

RevoRing covers the same supported threads through its adjustable mount. Compare the live filter-plus-extra-ring total with RevoRing’s price, then decide whether repeated size changes and the wider ND range justify the difference for your work.

A 67mm + 72mm + 77mm lens kit

Choose the 77mm PROII for this group. It mounts directly on the 77mm lens, and its included 72–77mm ring covers the 72mm lens. Add one 67–77mm ring for the 67mm lens; check that exact ring’s availability before ordering.

If an 82mm-thread lens is already on your buying plan, an 82mm filter may make more sense from the start. For the current 67/72/77mm lenses, its included 77–82mm ring covers 77mm; add direct 67–82mm and 72–82mm rings for the other two. The future 82mm lens would then fit directly. A 77mm filter will not cover an 82mm lens through a step-up ring.

For other combinations, use our step-up ring guide and lens-to-filter selector. Check which conversion comes in the filter box before ordering another ring.

Which should I buy? A 30-second decision

If this sounds like you…Our starting choice
I have 77mm and 82mm lenses and want one filter.Haida PROII 82mm — the 77–82mm ring is included.
I have 67mm and 72mm lenses and want one filter.Haida PROII 72mm — the 67–72mm ring is included.
I frequently change between several thread sizes within 67–82mm.RevoRing Mark II 67–82mm — adjustable mounting across its supported range.
I regularly need less than 3 stops or more than 7 stops of ND.RevoRing Mark II — broader stated range; check the usable setting on your lens.
I prefer a familiar, fixed-diameter screw-in workflow.Haida PROII — choose the size and only the extra rings your kit needs.

Choose Haida when your lens sizes are known, you prefer a conventional screw-in connection and 3–7 stops suits your work. Choose RevoRing when frequent changes across supported thread sizes or a wider ND range will make a practical difference.

Before you order: three checks

  • Read the Ø filter-thread marking on each lens, such as Ø77mm. Focal length, such as 24–70mm, is not the filter-thread size.
  • Decide which lenses will share the filter. If two cameras need the effect at the same time, plan for two filters.
  • Check the complete assembly on your widest lens: hood and cap fit, rig clearance, corner darkening and the ND setting you intend to use.

Our Take: Haida is a practical filter solution for a defined lens kit

For a kit built around known lens sizes, we would lean towards Haida PROII. A conventional threaded connection, CPL + VND in one filter and a matching ring already in the box make a useful working package. With two adjacent sizes, the filter package alone covers both; with three smaller-or-equal sizes, buy only the missing conversion. That practical value matters before you compare prices.

RevoRing earns its place when maximum mounting flexibility within 67–82mm is the priority, or your exposure needs call for its broader ND range. We would pay for that flexibility when the shooting routine benefits from it. For a simple threaded setup around the lenses you already own, Haida is our starting recommendation.

The real question is not which filter has more features, but which ones you will use. For a settled lens kit, that usually means Haida. For a kit that changes from shoot to shoot, RevoRing’s flexibility is worth paying for.

Choose your Haida PROII size or compare RevoRing Mark II 67–82mm.
