One Filter for Several Lenses: How to Choose the Right Step-Up Rings

Three camera lenses, a shared glass filter and open step-up rings; generated illustration

A step-up ring lets a smaller lens thread accept a larger screw-in filter. Choosing the correct two numbers can save you from buying the same ND or CPL in several sizes. Use the selector below, then check hood clearance and the mounting requirements of your filter system.

Quick answer: the first number is your lens, the second is your filter

A 67–82mm step-up ring fits a lens with a 67mm front filter thread and accepts an 82mm screw-in filter. It contains no optical glass and does not change focal length. If your lens and filter are both 82mm, you need no size-conversion ring.

For a kit with 67mm, 72mm and 77mm lens threads, one 82mm filter can be shared using one 67–82mm, one 72–82mm and one 77–82mm ring. Choose your filter diameter from the largest thread you need to cover, then buy a direct ring for each smaller lens.

The Haida 82mm ring range includes all three example sizes at ₹498 each when checked. That is ₹1,494 in rings, instead of purchasing three separate filters. Use the size selector for your own combination.

Prices below were checked on 2 October 2026. Product pages show the latest price, availability and exact variant; totals exclude any checkout offers or shipping.

Quick Comparison

Find your step-up ring

For conventional screw-in filter threads. Match the Ø size on your lens to your filter diameter.

Prices and listed availability checked 2 October 2026. Confirm the live product page before checkout. This selector does not certify magnetic-system compatibility or wide-angle clearance.

Lens threadFilter threadWhat to buyMatched shopping link
67mm82mm67–82mm step-up ringSelect 67–82mm ring
72mm82mm72–82mm step-up ringSelect 72–82mm ring
77mm82mm77–82mm step-up ringSelect 77–82mm ring
58mm77mm58–77mm step-up ringSelect 58–77mm ring
52mm77mm52–77mm step-up ringSelect 52–77mm ring
67mm77mm67–77mm step-up ringSelect 67–77mm ring
72mm77mm72–77mm ring; unavailable when checkedCheck matched variant or kit
82mm82mmNo size-conversion ringFit a compatible 82mm screw-in filter directly.
82mm77mmBuy a filter at least 82mm for this lensA smaller filter needs a step-down arrangement; check for obstruction.

Where to find your lens filter thread size

Look for the Ø symbol followed by a number on the lens front, lens barrel, lens cap or manufacturer specification. Ø67 means a 67mm filter thread. “50mm,” “24–70mm” and “f/2.8” describe other aspects of the lens; none is the front filter diameter.

Check every lens individually. Two lenses with the same focal length can use different filter threads. A hood size or camera mount name is also not enough to choose a ring. Some lenses have a protruding front element or no conventional front thread; an ordinary step-up ring is not a solution for those lenses.

Choose one shared filter size before buying rings

Write a small list of the lenses that will actually use the filter. If they are 58mm, 67mm and 77mm, a 77mm filter is a sensible shared size. If one is 82mm, move the shared filter to 82mm. Buying for a hypothetical future lens is a budget decision, so weigh the larger filter cost against how likely that purchase really is.

Prefer a single direct ring, such as 58–82mm, to a chain of 58–67mm and 67–82mm rings when the direct version is available. A chain adds depth, more threaded connections and more pieces to remove. It may be a temporary solution, but it is less convenient for a filter that moves between lenses repeatedly.

A worked example: three lenses and one Haida CPL-VND

Suppose your lens threads are 67mm, 72mm and 77mm. The 82mm Haida PROII CPL-VND costs ₹8,500. Three direct standard rings at ₹498 each bring the shared setup to ₹9,994.

Buying the same PROII separately at 67mm, 72mm and 77mm would cost ₹7,055 + ₹7,140 + ₹7,225 = ₹21,420 at the checked prices. The shared example saves ₹11,426. The tradeoff is practical: you can use the filter on only one lens at a time and must move it when you change lenses.

Separate filters can still make sense for two cameras working simultaneously, very frequent fast changes, or a setup where the larger filter blocks useful hood or rig access. The cost saving is worthwhile only if sharing fits the way you shoot.

Individual rings, kits or brass: which order is sensible?

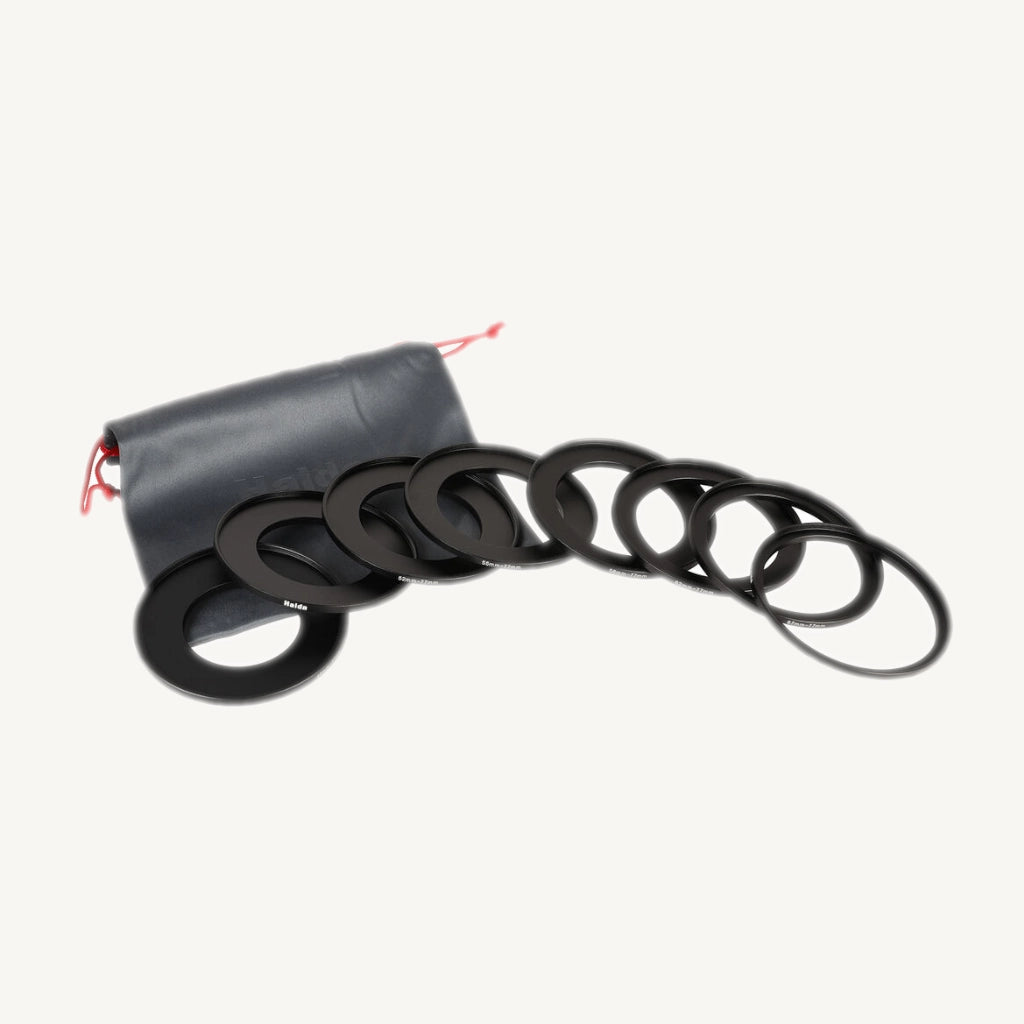

Buy individual rings when you know the exact two or three sizes you need. Consider the 77mm ring kit or 82mm ring kit when several listed lens sizes need coverage. Each kit was ₹2,700 when checked; compare its actual included sizes with the cost of your required singles.

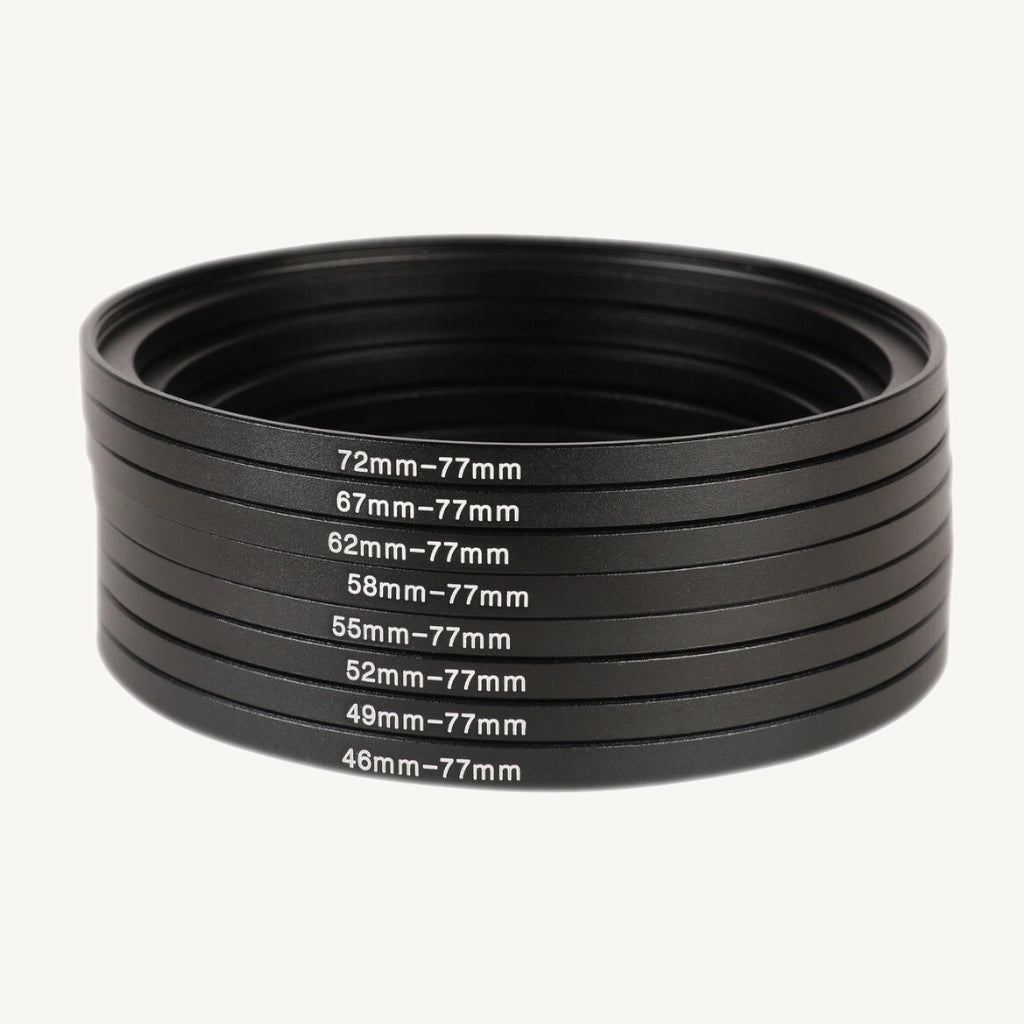

The 77mm kit lists conversions from 46, 49, 52, 55, 58, 62, 67 and 72mm. The 82mm kit lists 49, 52, 55, 58, 62, 67, 72 and 77mm. These are direct lens-to-target conversions: a kit is useful only if its target diameter matches the filter you intend to share.

The Haida brass 82mm ring range is an alternative construction at ₹1,785 per listed ring. Choose it when the material and handling preference justify the price. Do not assume that a more expensive ring increases image quality: a ring is a mechanical adapter, not an optical filter.

The generated images illustrate the kit and workflow. They are not photographs from an optical or flash performance test.

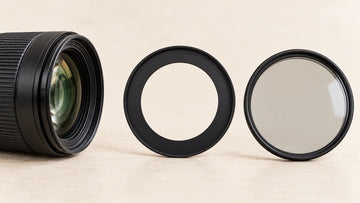

Lens front thread, open metal step-up ring and larger glass filter arranged separately; generated illustration

Will a step-up ring block my lens hood?

It can. Many original hoods attach to a separate bayonet, but a larger filter can still obstruct the hood’s opening or make fitting and removal awkward. Check the filter’s outer diameter and adjustment handles, not just the thread size. A working threaded connection does not guarantee a comfortable hood arrangement.

Plan the cap too. When a ring and larger filter stay mounted, the original smaller cap may no longer fit the front of the assembly. Use the appropriate cap for the exposed filter or system. Keep the original cap available for carrying the lens without the filter.

Wide-angle use: test the actual stack and corners

A step-up ring alone often provides more room than a smaller filter, but the complete assembly matters. Thick rims, stacked filters and additional adapters can intrude into the field of view. Check the widest focal length you will use, the intended aperture and the actual filter stack; inspect all four corners in a test frame.

If dark corners appear, first simplify the stack and check that everything is seated correctly. A larger filter might help, but do not treat a nominal 82mm size as a universal guarantee. For ultra-wide lenses and specialist holders, check the manufacturer’s fit advice before ordering.

Step-up rings and magnetic filters are two different compatibility checks

A conventional ring converts screw-thread diameter. A magnetic adapter also has a particular attachment interface. Matching “82mm” on two products does not prove that their magnetic faces connect securely, and matching the brand does not prove that different filter families share an interface.

For the Haida X-in-1 system, keep the kit’s matched native adapter and confirm any preceding threaded size conversion. For the 67–82mm RevoRing Mark II, the adjustable mount already covers its stated diameter range, so buying a conventional ring for each of those sizes misses the reason to choose that product.

Fit the ring without creating the next problem

Align the thread, turn gently and stop if it binds. Do not use force to make a questionable size fit. Keep mating threads clean and avoid overtightening; a ring should seat securely without becoming a removal struggle. Handle the filter and ring by their rims, and check the joint when changing lenses.

Your final shopping checklist

  • Read the actual Ø thread size on every lens that needs the filter.
  • Choose a shared filter at least as large as the largest required lens thread.
  • Buy a direct lens-to-filter ring for each smaller lens; equal sizes need none.
  • Confirm hood, cap, wide-angle and rig clearance with the complete assembly.
  • For magnetic systems, verify the specific native interface separately.
  • Use the matched variant links above and check current availability.

For a small lens kit, exact individual rings are usually the cleanest order. Choose a kit when its included sizes solve enough real needs to justify it. If rapid changes across several 67–82mm lenses are your priority, compare the adjustable RevoRing option against Haida plus rings before committing to a ring collection.

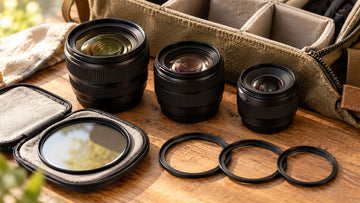

Travel camera bag with multiple lenses, one filter and open step-up rings; generated illustration

FAQs

What does 67–82mm mean on a step-up ring?

Can I use a 77mm filter on an 82mm lens with a step-up ring?

Do step-up rings affect image quality?
